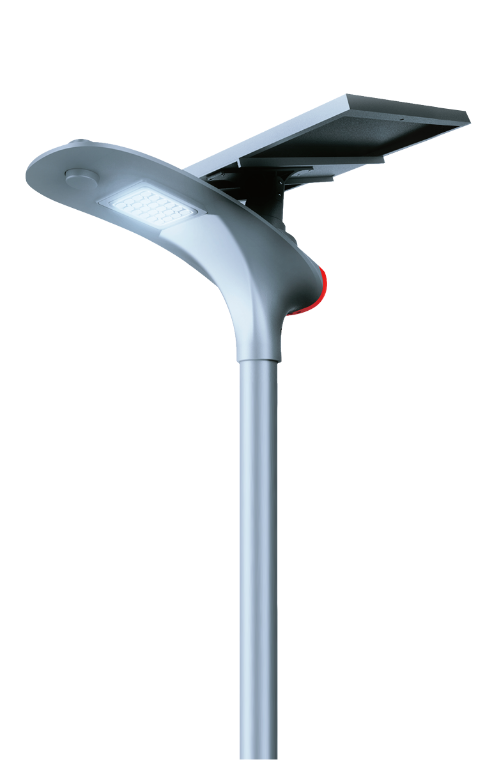

Solar FlyBird Light

Expert in intelligent lighting, light up the world. “Flybird” shape light body, modern and fashion appearance.  The first one use the highest light efficiency of led chip at 210lm/w, which is the first breakshtrough in the led lighting field.  Perfect structure design, no screws at the face of light. Aesthetic design at the back of light, 6 colors switch by turn. To guide you home at dark night.

Environmental
protection

Certified and
patented product

3-5 years
warranty

Unique Structure Design

Integrate the solar panel, led body, battery and controller into whole system. Easy to transport, install and maintain. Match with patent designed classic light poles, perfect combination with environment.

Solar FlyBird

Solar FlyBird

Solárne lampy Roadsmart vyvíja profesionálny tím pre výskum a vývoj, ktorý tvoria skúsení inžinieri LED osvietení a dizajnéri osvetlenia

01 Solar panel 02 Microwave sensor Controller 03 Lamp shell 04 Colorful decorative light 05 Lithium battery 06 Light source 07 Batwing lens

01 Solar panel

But I must explain to you how all this mistaken idea of denouncing pleasure and praising pain was born and I will give you a complete account of the system, and…

02 Microwave sensor Controller

But I must explain to you how all this mistaken idea of denouncing pleasure and praising pain was born and I will give you a complete account of the system, and…

03 Lamp shell

But I must explain to you how all this mistaken idea of denouncing pleasure and praising pain was born and I will give you a complete account of the system, and…

04 Colorful decorative light

But I must explain to you how all this mistaken idea of denouncing pleasure and praising pain was born and I will give you a complete account of the system, and…

05 Lithium battery

But I must explain to you how all this mistaken idea of denouncing pleasure and praising pain was born and I will give you a complete account of the system, and…

06 Light source

But I must explain to you how all this mistaken idea of denouncing pleasure and praising pain was born and I will give you a complete account of the system, and…

07 Batwing lens

But I must explain to you how all this mistaken idea of denouncing pleasure and praising pain was born and I will give you a complete account of the system, and…

Sun power

Solar panel looks like an umbrella to protect battery from high temperature and extend the lifetime. Perfectly solve heat dissipation.

Solar energy

Solar panel can be adjusted manually in vertical and horizontal direction, ensure the maximum efficiency of solar energy.

Core Technologies

As a result, it can adjust lights working condition according to customers’ requirements. By this way, solar street lights’ lifespan will be extended with optional llumination. Achieved blue-tooth music play function, network, App data reading and reseting function.

Remote control

Integrate the solar panel, led body, battery and controller into whole system.
Easy to transport, install and maintain. 6 working modes

Demo

No matter day or night, light “on” for 1 mintue. Only for test use.

OFF

Light “off”, no matter day or night.

L

At night, 100%-2hr, 70%-2hrs, 30%-dawn.

T

At night,100%-1hr, 70%-2hrs, 40%-3hrs.

M

At night, 50%-1hr, 100%-3hrs, 30%-dawn.

U

At night, 100%-1hr, 70%-3hrs, then sensor working,
50% if people come, 20% stand-by.

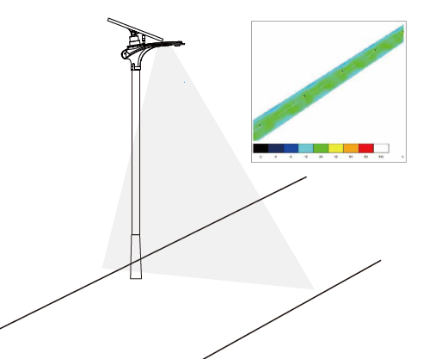

Light Distribution

01

Luminous intensity
distribution curves

02

Bat wing lens with
polarized light

Dimension

Technical parameter

TypeRS-FB65-CRS-FB80-C
PanelPower
Material
Solar cell efficiency
65W/18V
Mono crystalline silicon
19-20%
80W/18V
Mono crystalline silicon
19-20%
Lithium
battery
Capacity
Charge cycle times
195WH
1200 times
275WH
1200 times
Lamp headLuminous flux
Light output
LED qty
LED chip
Color temperature
CRI
Material of lamp head
Elevation angle
Lifespan
2260lm
15W
36pcs
Bridgelux 210lm/w
3000-6000K
≥70Ra
Die-cast aluminium
12° (attention to Dialux use)
50000hrs
3000lm
20W
36pcs
Bridgelux 210lm/w
3000-6000K
≥70Ra
Die-cast aluminium
12° (attention to Dialux use)
50000hrs
SystemLight control voltage
Light distribution
Beam angle
Lighting time(full charged)
Operation temperature
5V
Batwing lens with polarized light
2-3 rainy days
X-axis: 145° Y-axis: 59°
-20°C~60°C
5V
Batwing lens with polarized light
2-3 rainy days
X-axis: 145° Y-axis: 59°
-20°C~60°C
InstallationTop diameter of pole
Mounting height
Installation spacing
60mm
5-6m
10-20m
60mm
5-6m
10-20m

Application

Pathway

Village road

School

Park

Villa

Parking lots

Resort

Factory

Download

Roadsmart Solar Flybird Light Catalogue

The wisdom lead us to the success of the future

Roadsmart Catalogue Intelligent Solar Street Light

Download our catalogue with intelligent Solar Street Light.
